Nissan Rasheen Tachometer Repair and Instrument Cluster Inspection

Nissan Rasheen Tachometer Repair – Restoring Accurate Engine RPM Readings

During a recent pre-delivery inspection on this Nissan Rasheen, the rev counter refused to play ball. With these cars well past the 25-year mark, issues like dry solder joints, aging capacitors, or worn cluster contacts aren't unusual.

The Symptom: Tachometer Malfunction

The needle was sticking and lagging behind throttle inputs. Even with the engine idling smoothly underneath, a dead or erratic gauge leaves the driver guessing. We started with an initial bench test to isolate the fault: cluster circuitry or the distributor's RPM signal. The signal was fine; the cluster was the culprit.

Removing the Instrument Cluster

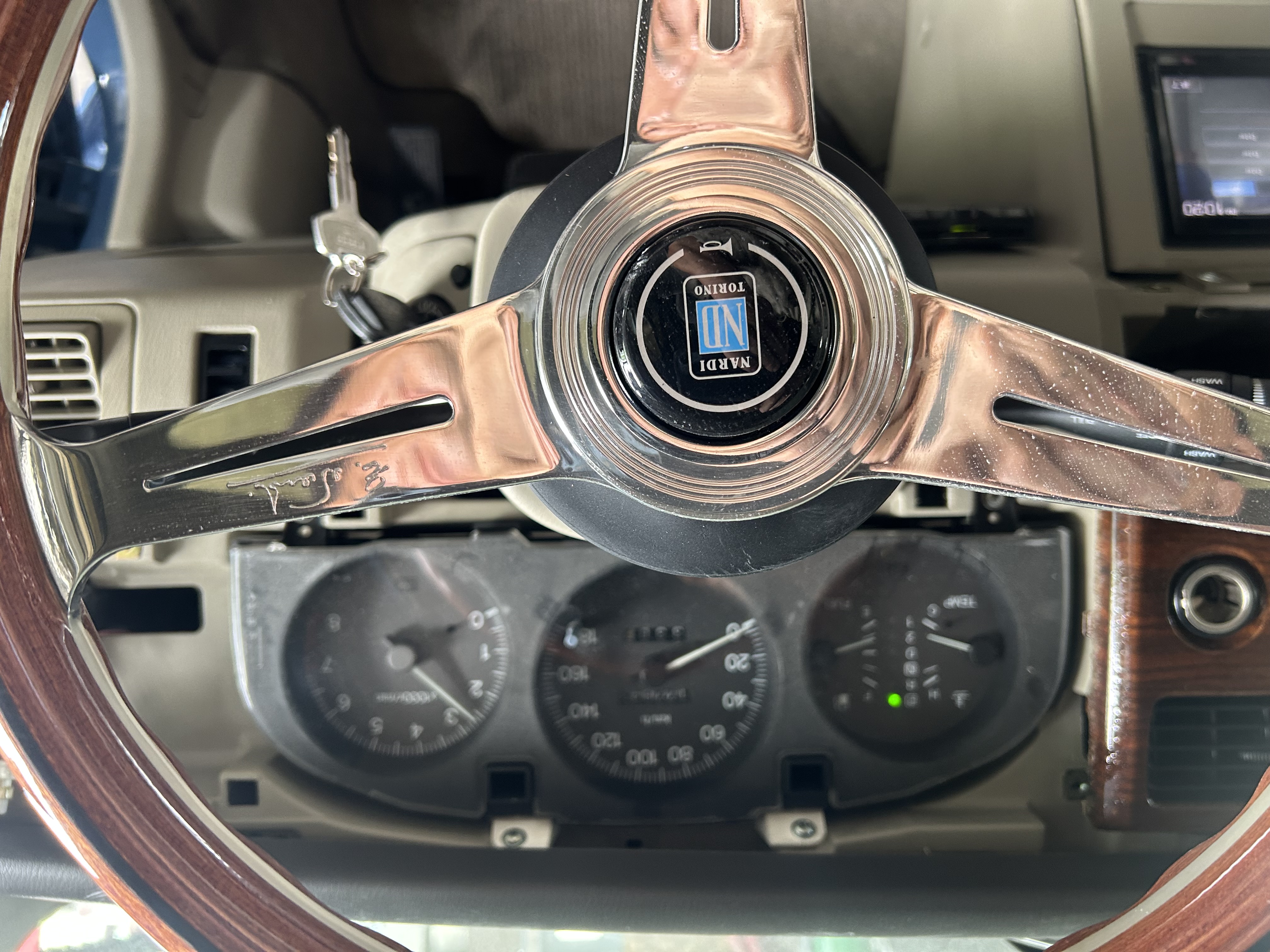

Getting it out starts with pulling the dash bezel. 1990s Nissan plastics and clips turn notoriously brittle over time, so nylon trim tools and a patient touch are non-negotiable if you want the factory mounting tabs to survive intact.

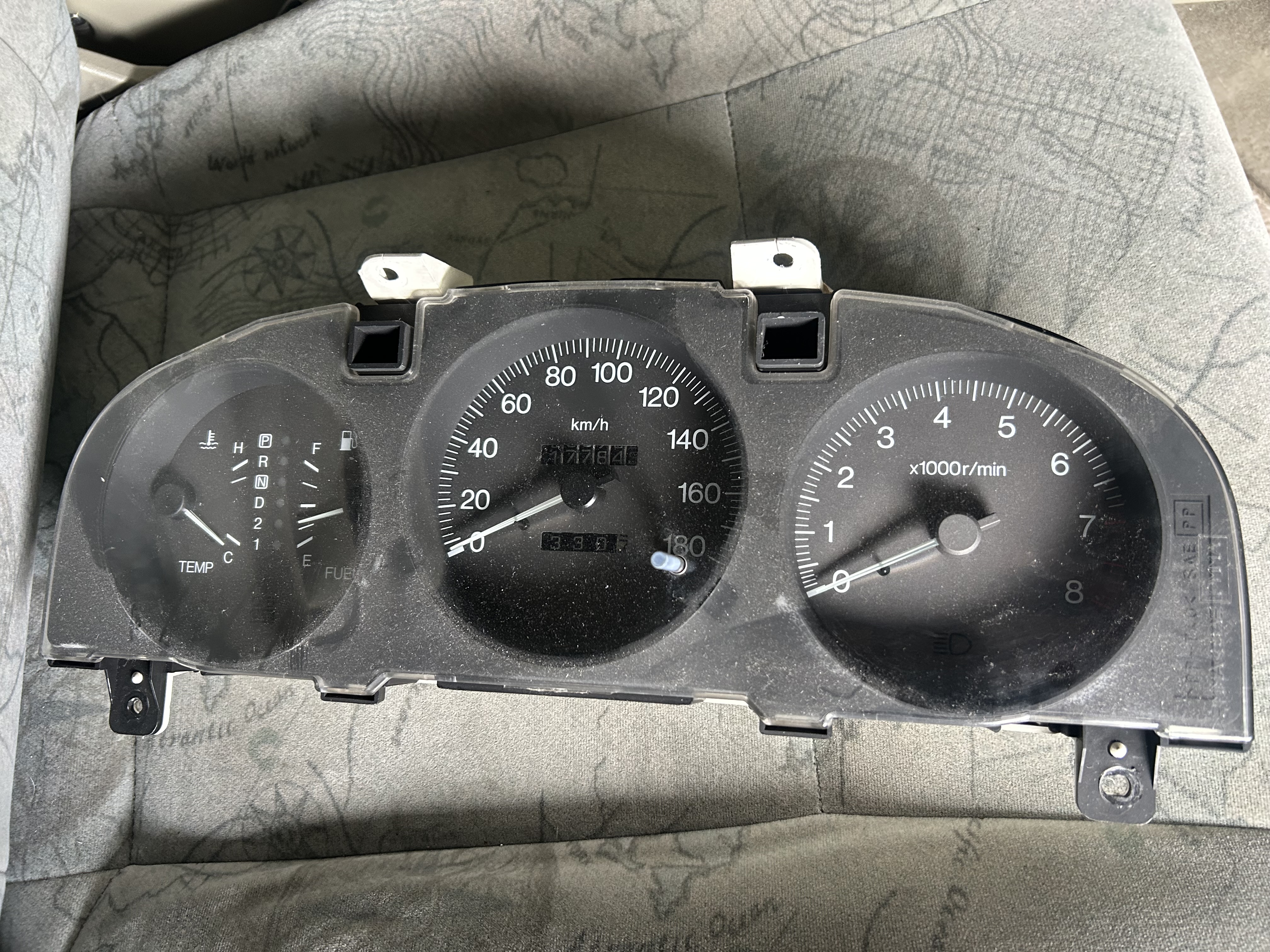

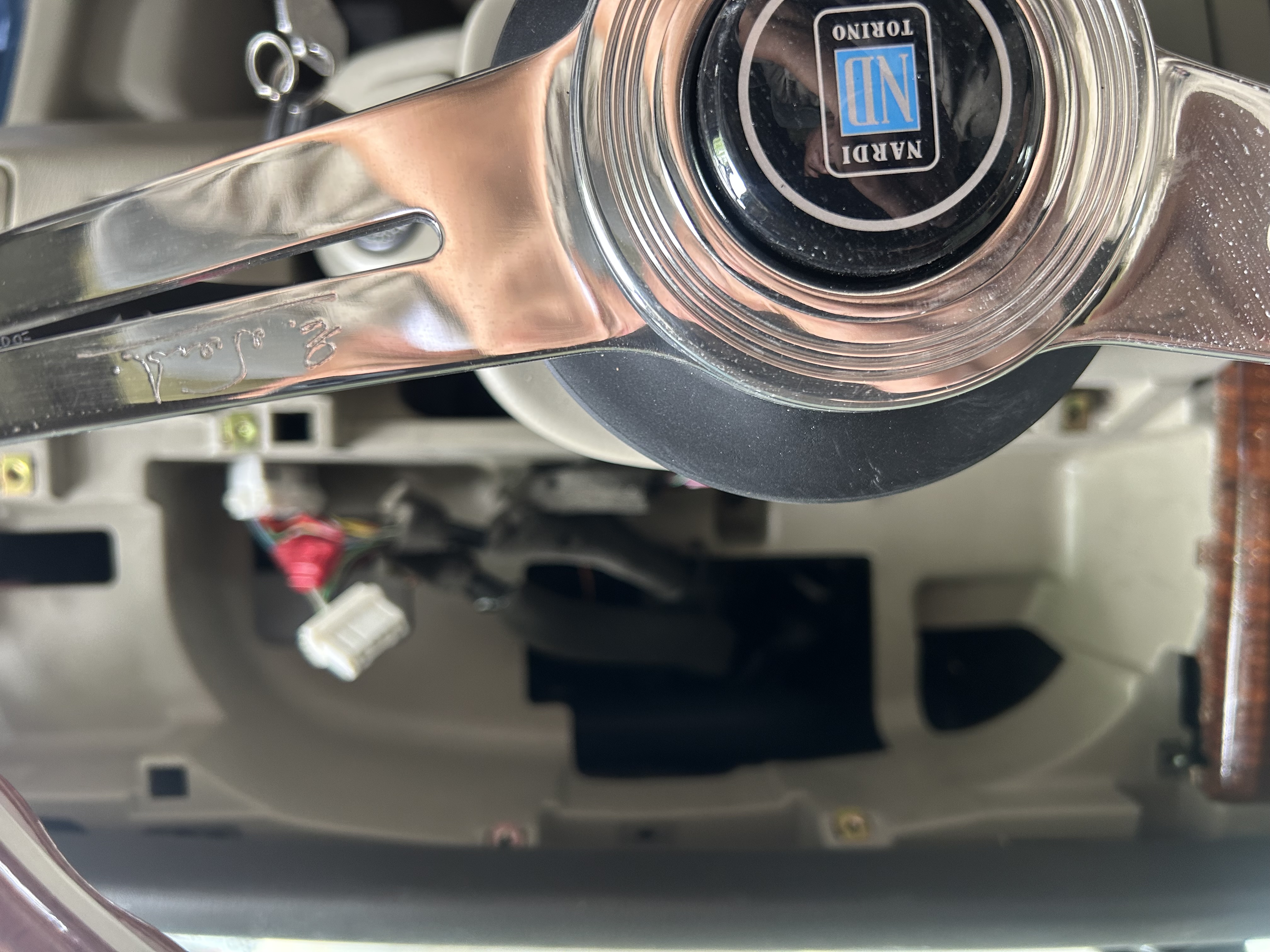

Once the cluster screws were backed out, we freed the wiring harnesses from the back of the assembly.

Inspecting the Tachometer and Circuitry

On the workbench, we stripped the housing down to inspect the tachometer movement and its supporting electronics.

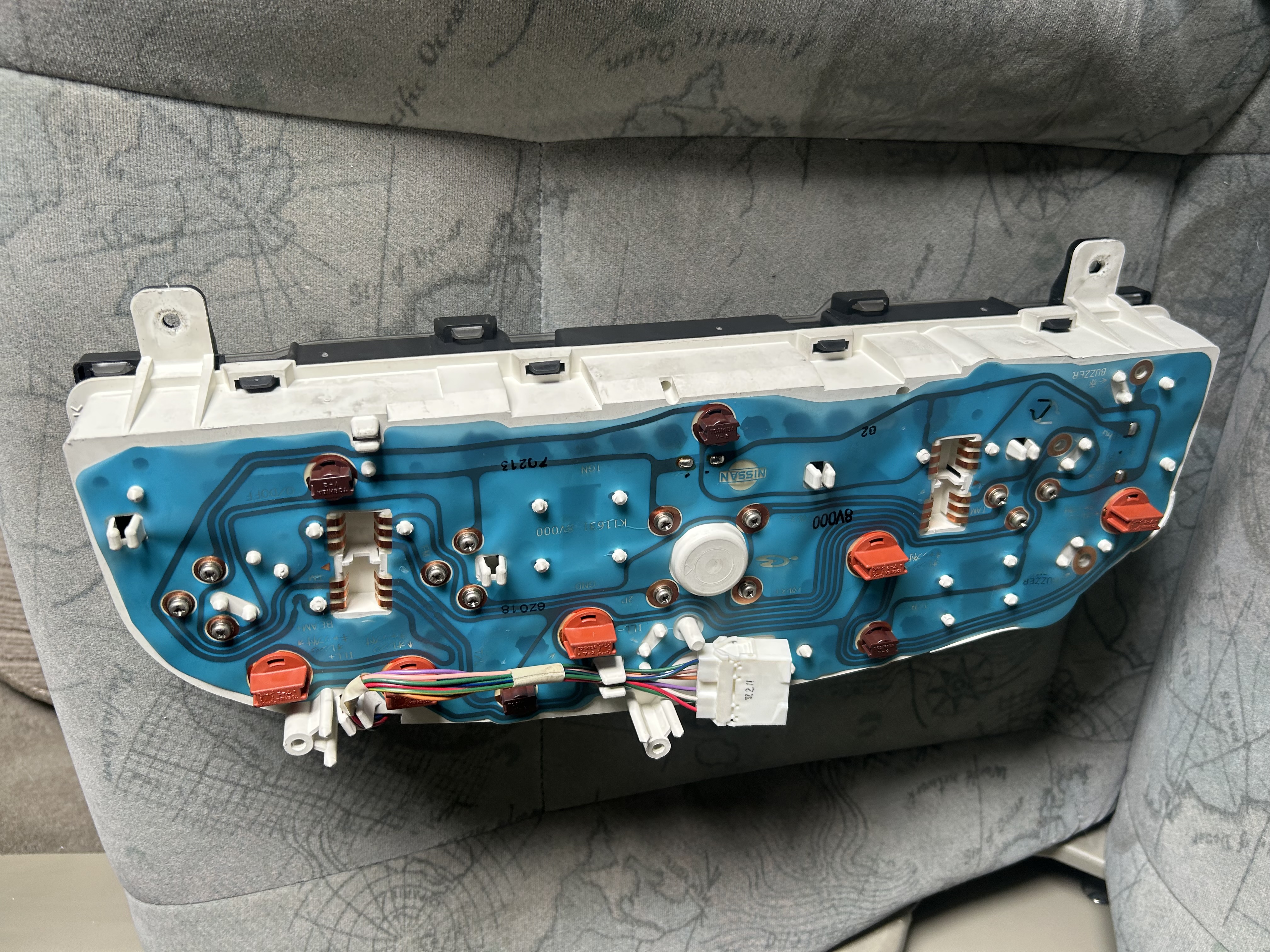

We focused on the flexible printed circuit board (PCB) that carries the traces, gauge pins, and warning lamp sockets.

We thoroughly inspected the tachometer components and carried out the necessary repairs, while also checking the surrounding connections for age-related wear, corrosion, and contact issues.

Reinstallation and Live Testing

With the cluster reassembled and plugged back into the harness, we fired up the engine to test the sweep across idle, steady cruise RPM, and quick throttle blips. The needle tracked cleanly and settled right where it should.

Maintaining a Classic Nissan Rasheen

As these cars push past 25 years on the road, small electrical quirks—from jittery needles to dim backlights—are bound to crop up. Sorting them properly takes hands-on bench time and a solid understanding of Nissan's Pike-era and 1990s platform architecture.

At Rasheenkan, preventative fixes like this are standard procedure. Clean photos and sharp paint mean nothing if the car isn't dialed in for daily driving. We build these to be dependable, character-rich cruisers from the moment they arrive.
